Brand Name : XD
Model Number : 15691KSW-S
Place of Origin : NINGBO CHINA
MOQ : negotiable
Price : negotiable
Payment Terms : D/P, L/C, T/T
Supply Ability : 100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting
Delivery Time : wihtin 30 days or as percustomers' requlement.
Packaging Details : export carton, wood pallet
Material : Stainless Steel, Brass, stainless steel, carbon steeL
Thread : NPT
technics : Forged
Type : Coupling
Connection : Male
Color : ucp
Surface treatment : Cr+3, Cr+6, Zn-Ni, Zinc plated
Shape : Equal

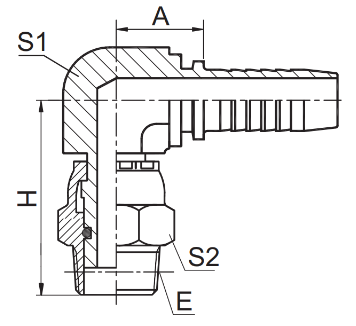

90° CNC machinery NPT SWIVEL hydraulic hexagon hose fittings nipples
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
DN | DASH | A | H | S1 | S2 | ||
15691KSW-04-04S | Z1/4"X18 | 6 | 04 | 25 | 16 | 19 | |
15691KSW-06-06S | Z3/8"X18 | 10 | 06 | 25 | 16 | 22 | |
15691KSW-08-08S | Z1/2"X14 | 12 | 08 | 28.5 | 19 | 27 | |
15691KSW-12-12S | Z3/4"X14 | 20 | 12 | 36 | 27 |
32 |
We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.
We can provide OEM service and develop new products according to customer's drawings and samples.
![]() |
90° Npt Swivel Hexagon Hydraulic Hose Fittings Jic Nipples Cnc Machinery Images |
